Product parameters

Single-ended gain switch gear high gain
Output power 2Vrms@32Ω(125MW@32Ω)
Decoding PCM 32bit/768KHz/DSD512
THD+N 0.0017%(A-weighting@0.5v)
Frequency response 20HZ-48K
Signal-to-noise ratio 122DB
Channel separation -75DB
Dynamic range 122DB
Output impedance 32Ω
Balance Gain switch gear high gain

Seven selling points

3.5mm+4.4mm Dual socket output
768Khz 32Bit
Active clock crystal oscillator
Interchangeable line design
270mW@32Ω
Zinc alloy gold-plated body
DSD512 hard solution
RT6863
independent ear amplifier chip
ES9038Q2 MDAC

Zinc alloy gold-plated shell

TP30 uses zinc alloy as the shell material, which can reduce electromagnetic interference. The plating of gold on the shell can not only prevent the oxidation of zinc alloy but also reouce the resistance and make the sound purer.

ES9038Q2M Independent chip

Equipped with a powerful flagship DAC chip 9038Q2M,it has outstanding decoding capabilities, supports PCM 32bit/768khz, and supports DSD512 hard solution,with a signal-to-noise ratio of 122DB, close to zero noise ftoor!

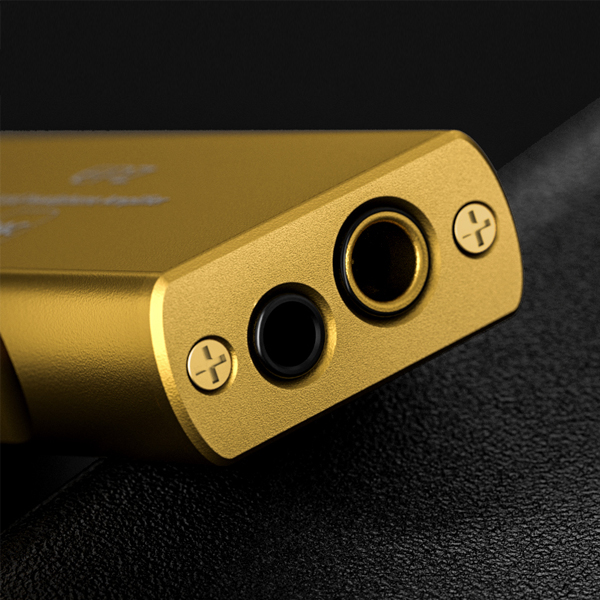

3.5mm+4.4mm Dual output

Standard 3.5mm single-ended +4.4mm balanced dual-port balanced output power up to 270mw@32Q Stronger driving force and suitable for a variety of equipment

Dual RT6863 ear amplifier chip

TP30 adopts 2 RT6863 amplifier chips,and the balanced output power can reach 270mw@32Ω to easily drive various high-impedance headphones

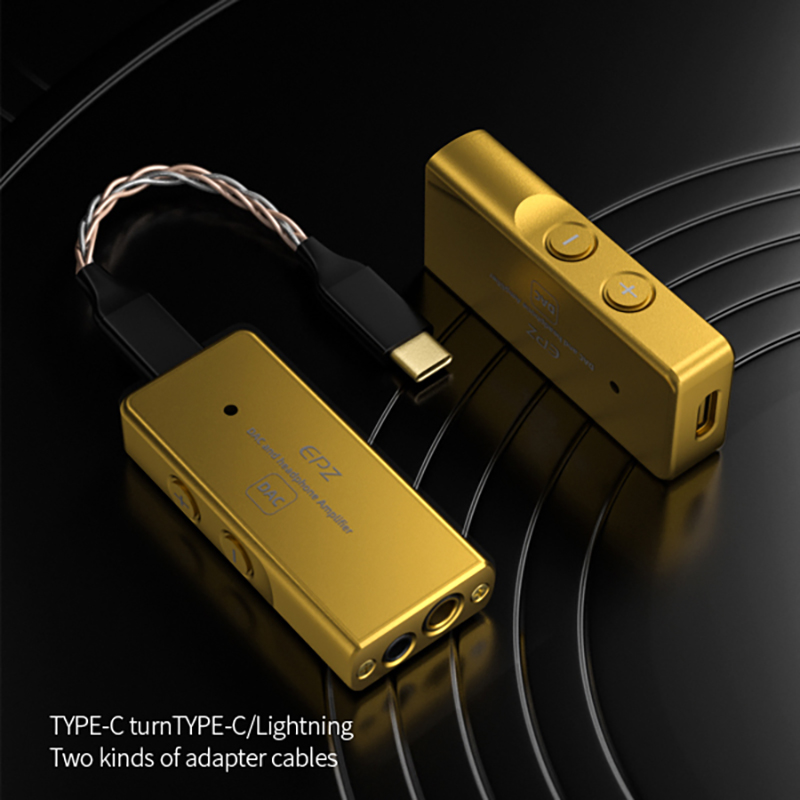

Split design, flexible transmission

High-purity single crystal copper/ silver-plated mixed wire

TP30 adopts a split design, giving away 8 strands of c To C or c To Lightning single crystal copper mixed wire, which is more flexible to use and has purer sound quality!

Custom colors and patterns are available

Such as secondary patterns, game characters, various types of text battle team names and game weapons, etc.

Thousands of color combinations to show your unique personalities.

48 Personalized panels

Artist ink Series

This panel is hand-painted and requiresa customization fee of $41.43

Thin powder

Yunmo

Magenta

Cyan

Blue dye

amber

Nature series
Solid color series
Aurora Series
Stable wood series



Promise

Ocean

By the water

Mountain rhyme

Cloud smoke

Sycamore

Brilliant series
Rock series
Customized drawings

12 color cavities

Translucent series
Solid color series
Weight 1 kg
Dimensions 25 × 125 × 25 cm
Color

Green, Purple, Red

TP30
